Brief Introduction of WS2813 Lamp Belt

As a professional manufacturer and distributor of LED lamp belt, magic lamp has many main products. What are the characteristics and uses of these products? Magic lamp will give you a brief introduction. Now let's look at the advantages and uses of ws2813 lamp belt.

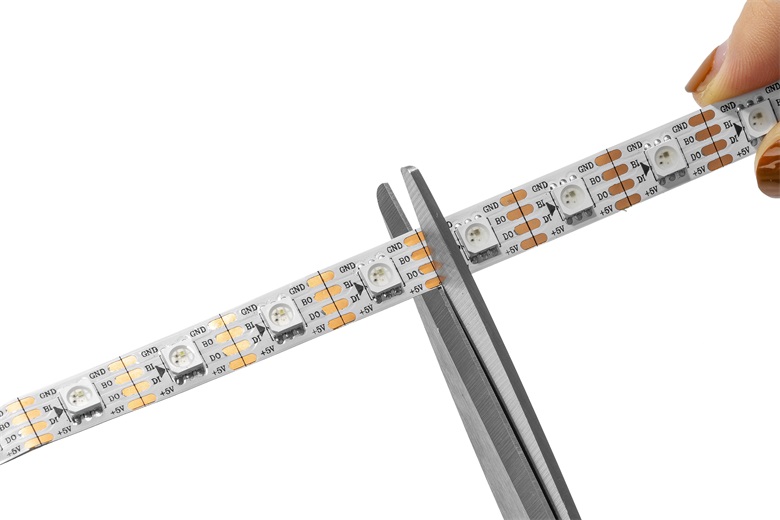

Ws2813 is a single-point single-control built-in chip-type LED lamp band. Its greatest feature is that it has the function of breakpoint continuous transmission and can match most models of controllers in the market. All of its components are integrated in the 5050 package, which can directly constitute an external control pixel without any other peripheral components. It also uses a built-in signal shaping circuit, which ensures that the line does not have much abnormal changes. At the same time, he also has intelligent reverse connection protection, even if the power supply is connected back, it will not damage the components.


Brief Introduction of WS2813 Lamp Belt


The scanning rate of ws2813 port is 2KHz/s. Each pixel has three primary colors. Each primary color can achieve 256-level brightness display. Then 256*256*256 full-true color display can be realized. Its breakpoint transmission function is more able to increase the selling point, even in the case of single bead damage will affect the normal.


Ws2813 adopts serial cascade interface, and can receive and decode the lamp band by using a signal line. When the connection does not exceed five meters, it is not necessary to increase the transmission distance of any two points without adding any circuit when the transmission distance does not exceed five meters. In general, ws2813 can completely replace ws2812b.


Brief Introduction of WS2813 Lamp Belt


It should be noted that if reflow welding is required, it must be remembered that it can not be done more than twice. Otherwise, it's easy to burn out the beads.


ws2813 has many main applications, including home decoration, various outdoor applications, stage, bar, KTV and so on. But the most used is to make LED light-emitting words.


Brief Introduction of WS2813 Lamp Belt


Transportation Conditions of Lamp Belt: All products in the transport process, need to maintain a front-up, moisture-proof and waterproof, in the transport process to avoid squeezing, collision and violent vibration.

Lamp band storage and duration:

Room temperature sealed storage: 20 30 C, 40% - 60% RH, validity for one month;

Moisture-proof sealed storage: 20 ~30 C, 25%~60% RH, valid for 3 months;

After unpacking and unpacking, the product is recommended to be used within 2 hours (ambient temperature < 30 C, humidity < 60%).

3. Dehumidification treatment

LED products exceed the prescribed time limit, or are damped for other reasons, it is recommended that customers do dehumidification treatment before use.

Method of dehumidification: 70 C-75 C/22 +2 hours.


The parameters of ws2813 are as follows:

灯带类型

 WS2813 - 5050RGB

电源

DC 5V

IC型号

WS2813

电流

0.06A/颗

功率

0.3W/颗

信号传输

双线

灯数

30/60/144 颗/米

灯珠类型

内置 IC

灯珠芯片

三安, 晶元

灯珠颜色

RGB全彩

发光角度

120°

灯带板宽

30/60--10mm, 144--12mm

电路板类型

FPC软板

灰度级

256

灯板颜色

黑/白

防水等级

IP30/IP65/IP67

电源补压

5米一补压

3M 背胶

裸板/滴胶

控制方式

外控

灯带寿命

50000 小时

工作温度

-40 ~+70 °C
