Brief introduction of magic lamp t-300k magic color controller
Date:
2019-11-05

All the friends who have used the magic led slide strip know that to drive the strip needs to connect the controller, and the functions that different controllers can achieve are different. The controller used in family or small project can use simple Bluetooth controller, but in some large projects, it needs to use large-scale programmable controller to achieve the lighting effect. Today we will introduce the t-300k slide color controller which can be used online and offline.


I. characteristics of t-300k system

1. Level 32-65536 gray control, software gamma correction processing.

2. Combined with the video programming software lededit, it can control various point, line and surface light sources such as rule, abnormity, etc.

3. The computer is online and can support up to 300000 pixel control.

4. Each controller has 8 ports, and each port with 32 gray level can have a maximum of 1024 lights, and each port with 256 gray level can have a maximum of 512 lights.

5. Optimized network protocol is used for cascading between controllers without external switch.

6. Each controller must set the corresponding IP address through the dial switch of the controller, which is more stable in the project

7. Enhance TTL or 485 differential signal output (default TTL).

8. It is compatible with single wire and double wire IC control, and CLK clock line is not required when connecting lamps with single wire IC.

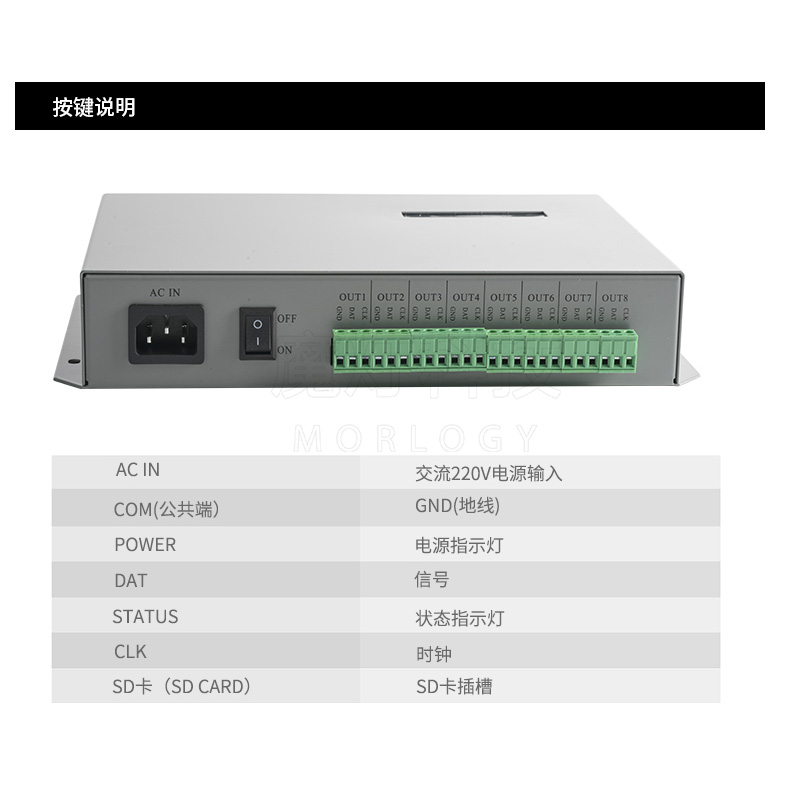

Brief introduction of magic lamp t-300k magic color controller


Note: 1. When the t-300k controller is offline, only the first main controller needs to be inserted into the SD card. The t-300k is compatible with the controller model t-300k-b on the upper computer software.


二、Support chip

Support chip

LedEditSoftware corresponding model

Number of on load lights per unit

Remarks

TM1803,TM1804,TM1809,TM1812

T-200K-B-TM1803

4096pixel

There are high speed and low speed

TM1829

T-200K-B-TM1829

4096pixel

There are high speed and low speed

UCS1903,UCS1903B ,UCS1909UCS1912

T-200K-B-UCS1903

4096pixel

There are high speed and low speed

UCS2903,UCS2909,UCS2912,

T-200K-B-UCS2903

4096pixel

There are high speed and low speed

UCS3903

T-200K-B-UCS1024

4096pixel


UCS6909UCS6912UCS7009UCS5903

T-200K-B-UCS6909

4096pixel


TA9909

T-200K-B-TA9909

4096pixel

There are high speed and low speed

MBI6021

T-200K-B-MBI6021

4096pixel


WS2811

T-200K-B-WS2811

4096pixel

There are high speed and low speed

INK1003

T-200K-B-INK1003

4096pixel

There are high speed and low speed

TLS3100

T-200K-B-TLS3100

4096pixel

There are high speed and low speed

SM16711

T-200K-B-SM16711

4096pixel

There are high speed and low speed

SM16716

T-200K-B-SM16716

4096pixel


SM16726

T-200K-B-SM16726

4096pixel


LPD6803,D705,1101

T-200K-B-6803

8192pixel


LPD8806,LPD8809

T-200K-B-8806

4096pixel


LPD1882,LPD1889

T-200K-B-1882

4096pixel

There are high speed and low speed

LPD6812

T-200K-B-6812

4096pixel

There are high speed and low speed

LPD6813

T-200K-B-6813

4096pixel


P9813

T-200K-B-P9813

4096pixel


DMX512

T-200K-B-DMX

1360/4096pixel

There are high speed and low speed

TM1903TM1904TM1909TM1912

T-200K-B-TM1903

4096pixel

There are high speed and low speed

WS2801,WS2803

T-200K-B-WS2801

4096pixel


DS189

T-200K-B-DS189

4096pixel


TLS3001,TLS3008

T-200K-B-TLS3001

*pixel


APA102

T-200K-B-APA102

4096pixel


BS0815

T-200K-B-0815

4096pixel


GW6203

T-200K-B-GW6203

4096pixel


BS0825

T-200K-B-0825

4096pixel


BS0901

T-200K-B-0901

4096pixel



Note: when the chip IC is 256 gray level, the controller has 512 lights at each port;

When IC of chip is 32 gray level, there are 1024 lights on each port of controller


Brief introduction of magic lamp t-300k magic color controller


III. use scenarios:

1. Lighting decoration of bars, KTV and other entertainment places.

2. Lighting exhibition, stage and other large-scale lighting show places.

3. The effect of running horses on game consoles and various large-scale electronic devices.

4. Use of medium and large lighting projects.


If you need t-300k, you can go to the magic lamp website to learn more detailed parameters, or you can go directly to the magic lamp 1688 mall to buy.
