Sk6812rgb slide color LED strip specification and installation matters
Date:
2019-10-26

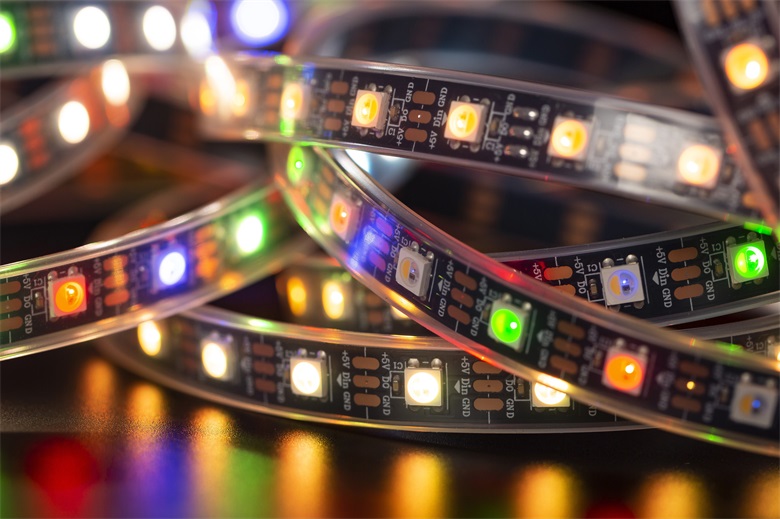

Sk6812rgb slide color LED light belt is one of the most popular magic light products. Many people who have preliminary contact with the LED light belt may not be familiar with some detailed specifications and installation methods of the light belt. Today, we will learn some knowledge about sk6812 light belt.


1. Product model: btf-dc5v-30 / 60 / 144led-sk6812rgbnw

2. Light source: SMD 5050 built-in icrgbnw point control lamp bead

3. Plate: FPCB;

4. Chip: Taiwan wafer chip, and other chips in Taiwan;

5. IC model sk6812rgbw (60 ICs per meter, one IC controls one LED lamp);

6. Gray level: 256 (1.30, 60, 144 pixels) + pure white light;

7. Led quantity: 30 / 60 lights / 144 / m, each light is a group, which can be cut;

8. Luminous angle: 180 °;

9. Luminous color: it can be adjusted to white, red, yellow, blue, green, etc. through the controller;

10. Standard working voltage: DC 5V;

11. Power: 9W, 18W 43.2w ± 10% / M;

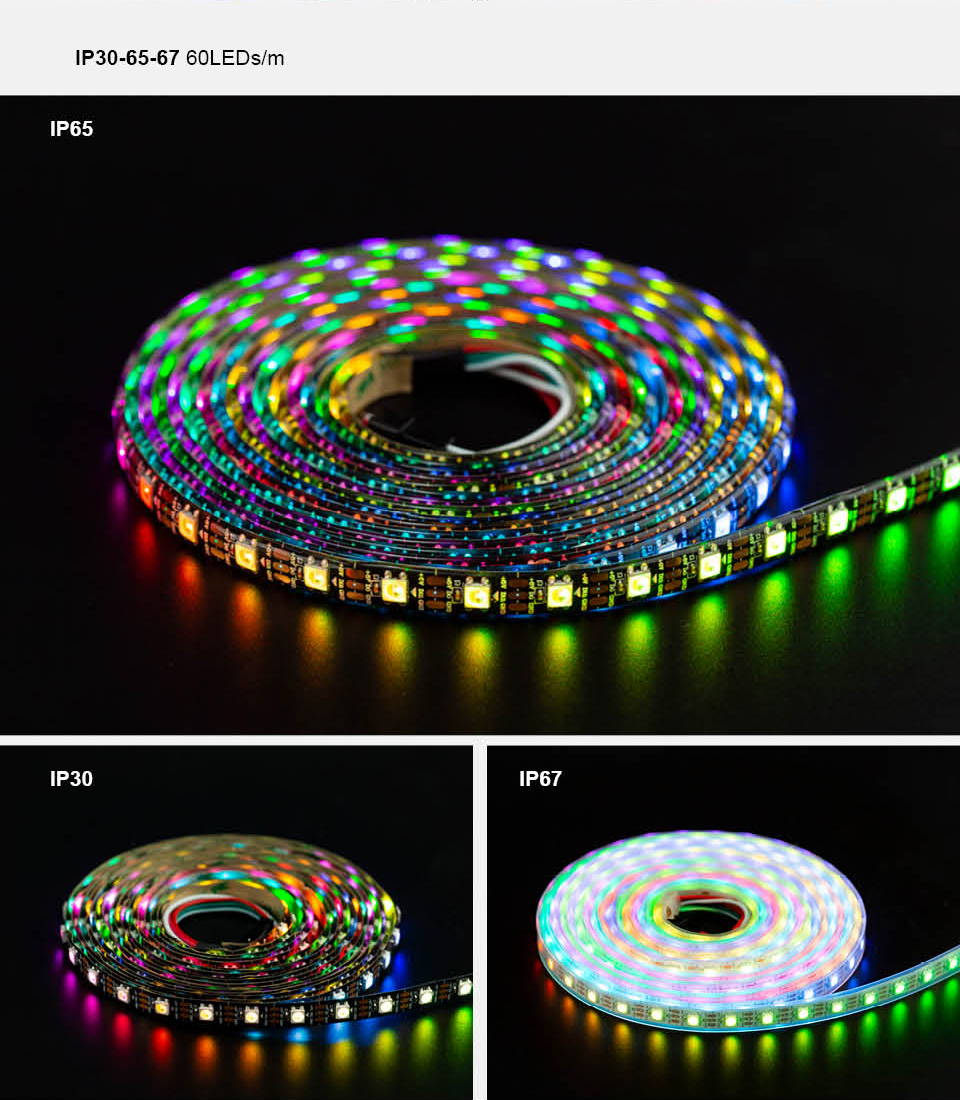

12. Waterproof grade: non waterproof (IP30), dropping glue (IP65), casing (IP67), solid casing glue (IP68), etc.

13. Size of FPCB board: width: 10 mm, thickness: 3 mm;

14. FPCB color: white, yellow, black (customized except for white);


Sk6812rgb slide color LED strip specification and installation matters


Installation mode and main items of rgbnw slide strip:

1. Indoor installation: the LED light belt is relatively simple for indoor installation, because it does not have to withstand wind and rain. During installation, the sticker on 3M double-sided adhesive surface on the back of the light strip can be removed directly, and then the light strip can be fixed at the place where it needs to be installed and flattened. If the corner or the light strip is too long or too short, the LED light strip can be cut or welded at each group of tangent lines marked with scissors.


2. Outdoor installation: because outdoor installation will withstand wind and rain, 3M glue can not be used for fixation. Therefore, the way of fixing outdoor installation is often used in the way of card slot, where cutting and connection are needed. The method is the same as indoor installation, but additional waterproof glue is needed to consolidate the waterproof effect of connection point.


3. Power connection method: the general voltage of LED slide is DC 5V, so it needs to use switch power supply. The size of power supply depends on the power and connection length of LED slide.


Connection mode of controller: LED running light belt and RGBW full color light belt need to use controller to achieve variable effect, and the control distance of each controller is different. Generally speaking, the control distance of simple controller is 10 to 15 meters, the control distance of remote controller is 15 to 20 meters, and the longest distance can be controlled to 30 meters. If the connection distance of LED light strip is long, and the controller can't control such a long light strip, then the power amplifier is needed for tapping.


Sk6812rgb slide color LED strip specification and installation matters


Power + controller + light bar


1. First, identify the direction: there are some small arrows on each section of light bar, the direction indicated by the arrow is the output end, indicating the signal is transmitted forward; the direction at the tail of the arrow is the input end, indicating the wiring direction of our link signal;


2. The input end of each coil of light strip (that is, the front of the tail direction of the arrow on the light strip) has a three-color (red, green and white) butt joint and a two-color (red and white) butt joint; the three-color joint (red, green and white) is connected to the controller: the red positive pole is not connected (or connected to the positive pole of 5V power source on the power supply) and the green signal is connected to the output port on the controller, which is usually: D white.- The ground terminal (i.e. 5V negative pole) on the ground connection controller is usually GND or com two-color connector (red and white) for power supply: the positive pole on the red positive 5V power transformer is usually + V white negative 5V power transformer is usually: - V or com


After reading these, do you have a certain understanding of sk6812rgb slide color LED light belt? If you want to know more about the light belt, you can pay attention to magic light network. Magic light will often explain some led knowledge and news for you free.
