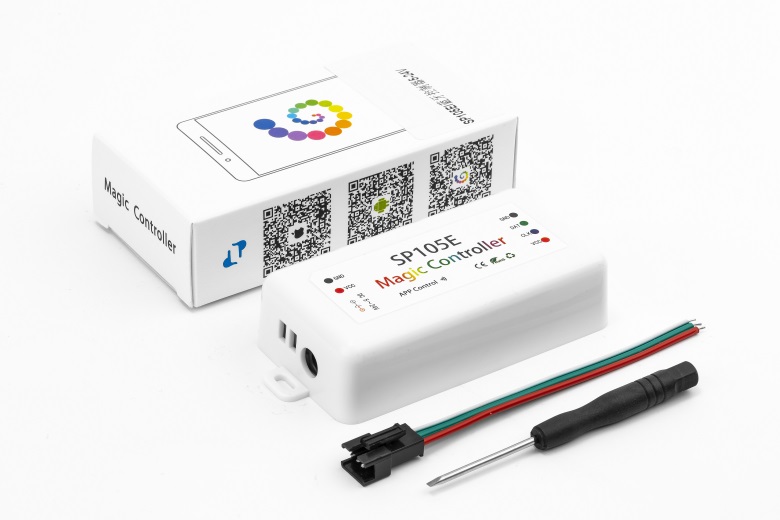

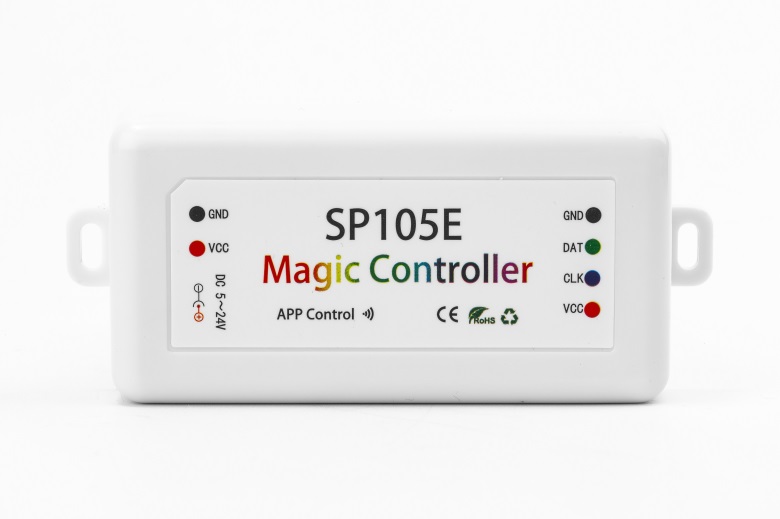

Brief Introduction of Magic Lamp SP105E Bluetooth Slide Strip Controller
Date:
2019-10-14

Product Description:

The magic lamp SP105E controller uses Bluetooth control, supports almost every kind of LED driver IC with adjustable brightness and 200 patterns. It supports controlling up to 2048 pixels, wide working voltage of DC5V~24V, prevents reverse connection of power supply, saves user settings, and can match most of the slide series. It is suitable for clubs, bars, shopping malls, cinemas, squares, guest rooms, KTV, etc.


Product characteristics:

1. Using Bluetooth APP control of mobile phone, it can be operated remotely, designed with humanization and easy to use.

2. Supporting most single-line or double-line LED driver IC in the market, you can freely choose IC in APP.

3. RGB channel sequence can be adjusted, brightness can be adjusted, built-in a variety of patterns to achieve different lighting effects.

4. Adjustable cascade points, up to 2048 pixels can be driven.

5. Power supply has anti-backconnection function, DC5V-24V working voltage, safe use.

6. It has the function of automatically saving setting parameters when power is cut off.


Brief Introduction of Magic Lamp SP105E Bluetooth Slide Strip Controller


Product APP:

This controller is controlled by mobile APP. The mobile phone needs Bluetooth 4.0. The operating system is IOS and Android. IOS support models are: 4S | 5/5S/5C | 6S/6sPlus | 6/6Plus, which requires IOS 8.0 or higher.

Android supports Android 4.3 or higher.

Download mode: App can be found by searching 'Magic-LED' in the corresponding application market, or download and install by scanning the corresponding two-dimensional code below.


Brief Introduction of Magic Lamp SP105E Bluetooth Slide Strip Controller


Product parameters:

Working temperature: - 20 C~60 C;

Working voltage: DC5V ~ 24V;

Working current: 28mA ~ 40mA;

Remote control distance: 20M;

Size: 85mm*45mm*22mm;

Net weight: 40g; certification: CE, RoHS


In conclusion, SP105E is a very popular product in magic lamp LED controller products. It is easy to operate, easy to control, safe to use and other characteristics make it popular with many people. Friends who like this controller can go to Magic Lantern Online Mall to learn and buy.
